KRX Series


Flow Rate

135 – 1190 L/min

Features

  • No oil in either vacuum, blower or combination application
  • Quiet operation
  • Long life
  • Gauge and controller equipment standard
  • Dependable and proven design

Specifications

Model Speed (rpm) 50HZ Capacity *1 (L/min) Ultimate vacuum *2 (kPa) Continuous
vacuum *3
(kpa)
Continuous
blower *3
(kpa)
Motor I/O port Motor Voltage Motor Output (kW) Mass(kg)
50HZ 60HZ
KRX1-L-V 1400 135 155 79 60 - Rc 3/4 3PH415V50Hz 0.18 16
KRX1-L-B 1400 135 155 - - 60 Rc 3/4 3PH415V50Hz 0.18 16
KRX1-L-VB 1400 135 155 79 V+B≤60 Rc 3/4 3PH415V50Hz 0.18 16
KRX3-L-V 1400 235 280 84 60 - Rc 3/4 3PH415V50Hz 0.37 21.5
KRX3-L-B 1400 235 280 - - 60 Rc 3/4 3PH415V50Hz 0.37 21.5
KRX3-L-VB 1400 235 280 84 V+B≤60 Rc 3/4 3PH415V50Hz 0.37 21.5
KRX5-L-V 1400 405 480 86 60 - Rc 3/4 3PH415V50Hz 0.75 33
KRX5-L-B 1400 405 480 - - 60 Rc 3/4 3PH415V50Hz 0.75 33
KRX5-L-VB 1400 405 480 86 V+B≤60 Rc 3/4 3PH415V50Hz 0.75 33
KRX6-L-V 1400 575 685 86 60 - Rc 3/4 3PH415V50Hz 1.5 40
KRX6-L-B 1400 575 685 - - 60 Rc 3/4 3PH415V50Hz 1.5 40
KRX6-L-VB 1400 575 685 86 V+B≤60 Rc 3/4 3PH415V50Hz 1.5 40
KRX7A-L-V 1400 1190 - 90 60 - Rc 1 3PH415V50Hz 2.2 68
KRX7A-L-B 1400 1190 - - - 60 Rc 1 3PH415V50Hz 2.2 68
KRX7A-L-VB 1400 1190 - 90 V+B≤60 Rc 1 3PH415V50Hz 2.2 68

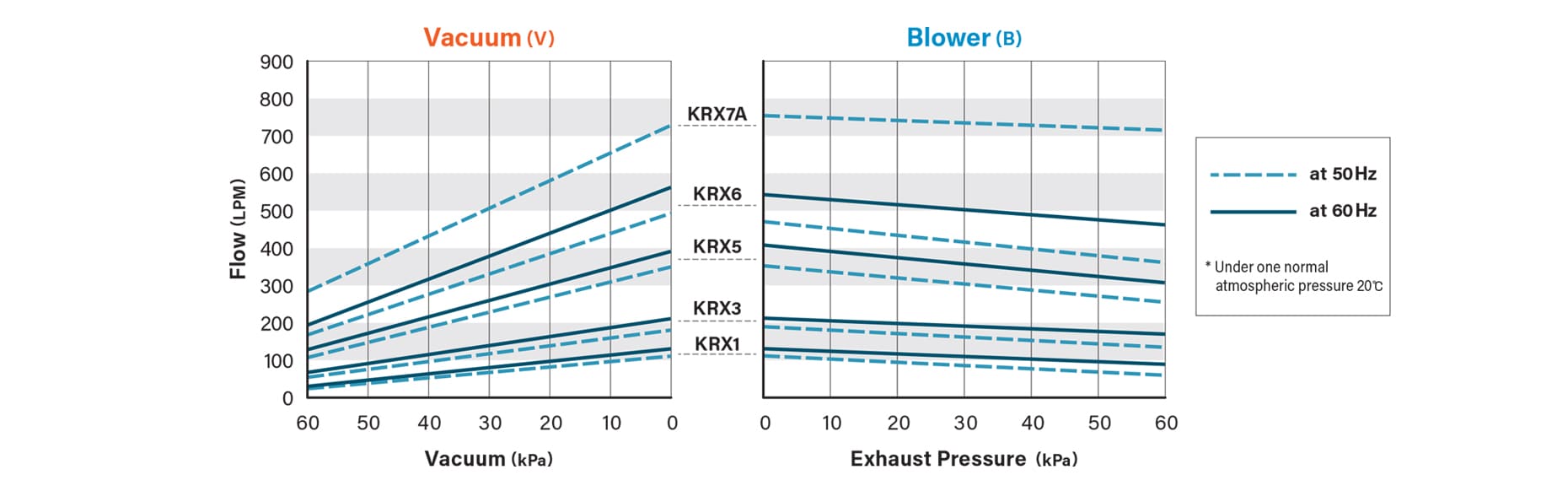

Performance Data


Outer Dimension

Models

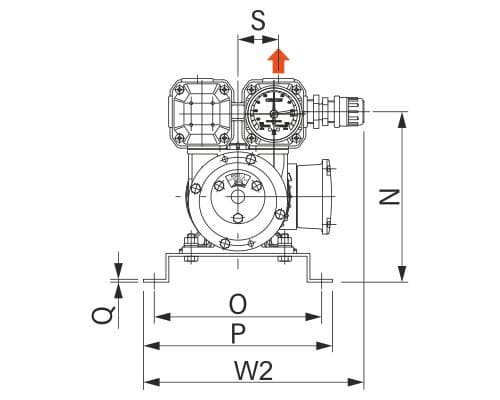

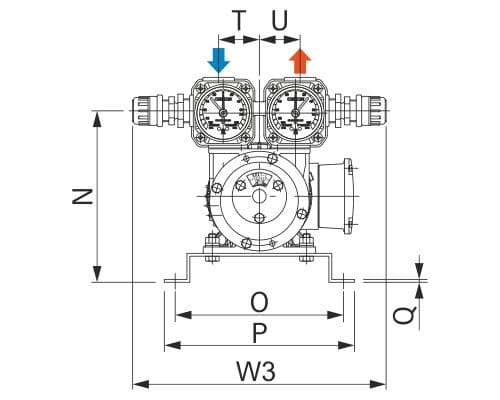

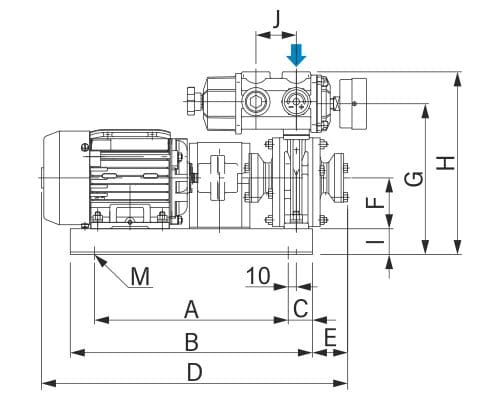

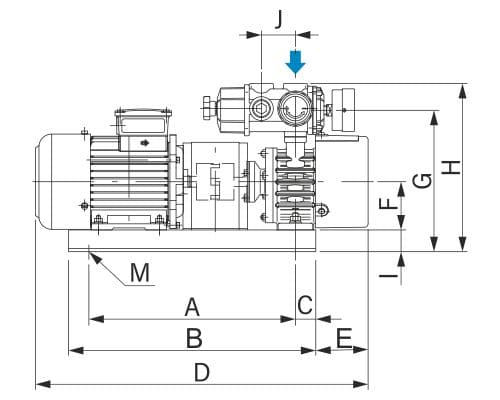

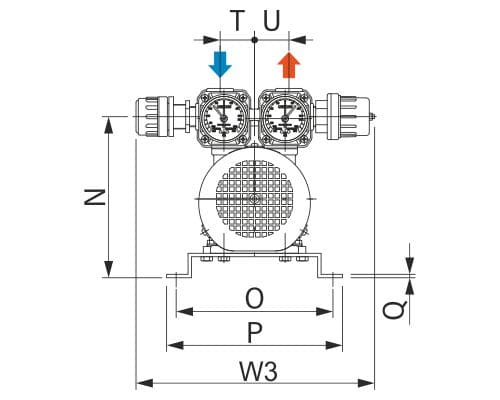

Model (mm) H D W1 W2 W3 A B C E F G I
KRX1-L (-V, -B, -VB) (227) (380)* (245) (245) (280) 240 300 30 (44) 63 (187) 32
KRX3-L (-V, -B, -VB) (248) (490)* (270) (272) (312) 304 364 30 (77) 71 (208) 32
KRX5-L (-V, -B, -VB) (250) (542)* (270) (272) (312) 340 402 31 (83) 80 (210) 32
KRX6-L (-V, -B, -VB) (273) (664)* (276) (278) (312) 420 470 25 (102) 90 (233) 38
KRX7A-L (-V, -B, -VB) (325) (767)* (326) (333) (379) 430 530 50 (136) 100 (270) 38

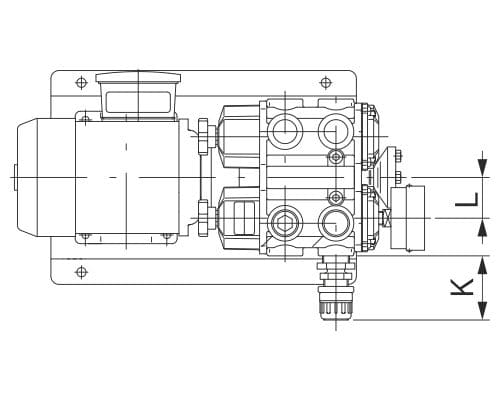

Model (mm) J K L M N O P Q R S T U
KRX1-L (-V, -B, -VB) 50 (63) 40 4-φ9 (190) 186 210 3.2 45 45 45 45
KRX3-L (-V, -B, -VB) 50 (78) 40 4-φ9 (211) 205 230 4.5 45 45 45 45
KRX5-L (-V, -B, -VB) 50 (78) 40 4-φ9 (213) 205 230 4.5 45 45 45 45
KRX6-L (-V, -B, -VB) 50 (78) 40 4-φ10 (236) 220 242 4.5 45 45 45 45
KRX7A-L (-V, -B, -VB) 70 (86) 50 4-φ12 (270) 250 280 4.5 55 55 55 55

* Dimensions are for V type. * Reference data with standard motor

Functioning Principle

  • A rotor is placed eccentrically within a cylinder. All components are precisely manufactured and adjusted to achieve minimum clearances. Vanes are inserted into slots in the rotor and are free to slip in and out within the walls of the cylinder. As the rotor turns, the vanes slide out and are kept in constant contact with the cylinder wall due to centrifugal force.
  • As the rotor turns, the volume of space between the vanes changes. As shown in the illustration, when the rotor spins from state 1 to 2, the increase in volume at the intake creates a vacuum. As the volume of space between the vanes decreases during the cycle, the air trapped between the vanes is compressed as shown between states 2 and 3. Finally between states 3 and 4 the compressed air is allowed to escape through the air outlet. The process repeats as the rotor continuously rotates in order to achieve a constant air flow from inlet to outlet.
  • A four-vane-type pump provides intake/discharge 4 times in a single rotation. Defining volume at the end of intake as V (L), and rotation speed as N (rpm), 4VN (L) of air is discharged per minute. This theoretical value is what's known as the designed pumping capacity.
