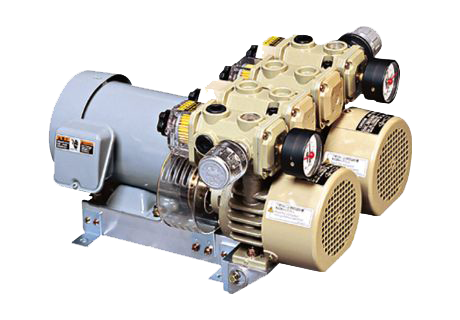

Specifications

Model	Speed (rpm) 50HZ	Capacity *1 (L/min)				Continuous vacuum *2 (kpa)		Continuous blower *2 (kpa)		I/O port	Motor Voltage	Motor Output (kW)	Mass(kg)
		Pump No.1		Pump No.2		Continuous vacuum *2 (kpa)		Continuous blower *2 (kpa)
		50HZ	60HZ	50HZ	60HZ	Pump No.1	Pump No.2	Pump No.1	Pump No.2
CBX15-L-VB	1400	235	280	235	280	60	-	-	60	Rc 3/4	3PH415V50Hz	0.75	41
CBX15-L-VBVB	1400	235	280	235	280	55	35	20	50	Rc 3/4	3PH415V50Hz	0.75	41
CBX25-L-VB	1400	405	480	405	480	60	-	-	60	Rc 3/4	3PH415V50Hz	1.5	49
CBX25-L-VBVB	1400	405	480	405	480	55	35	20	50	Rc 3/4	3PH415V50Hz	1.5	49
CBX40-L-VB	1400	575	685	575	685	60	-	-	60	Rc 3/4	3PH415V50Hz	2.2	67
CBX40-L-VBVB	1400	575	685	575	685	55	35	20	50	Rc 3/4	3PH415V50Hz	2.2	67
CBX62-L-VB	1400	935	1115	935	1115	60	-	-	60	Rc 1	3PH415V50Hz	3.7	111
CBX62-L-VBVB	1400	935	1115	935	1115	55	35	20	50	Rc 1	3PH415V50Hz	3.7	111

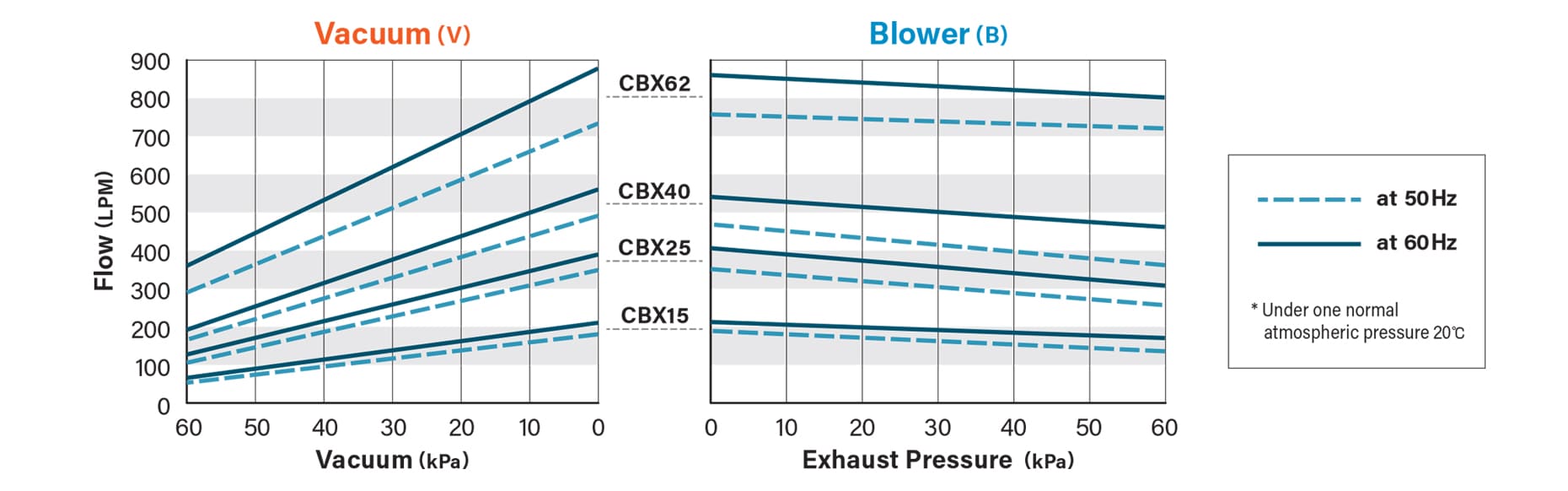

Capacity: Design displacement, logic value is calculated from the cubic volume. The actual flow rate refers to the actual measurement data of performances.
The usable range of the degree of vacuum/blower pressure.
For the intake air, use clean air of normal temperature and normal humidity whenever possible.
Intake air condition: Temperature 0 to 40℃ and Humidity 65%RH±20%.
The allowable variation range of the supply voltage should be ± 10% of rated voltage.
Install an overload protector (thermal relays, etc.) Setting value: Use the rated current value which is indicated on the specification plate of the motor, 110% at 50Hz, 120% at 60Hz.
Check availability to Kumark, if operating Orion vacuum pumps with 60Hz condition.

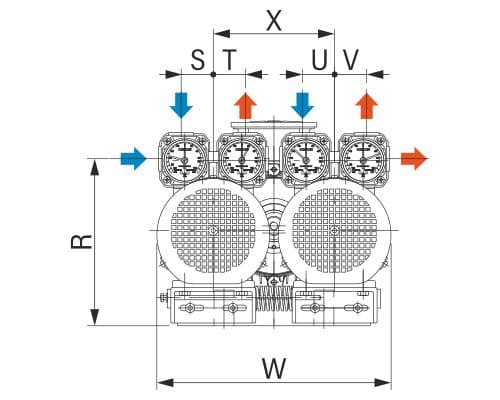

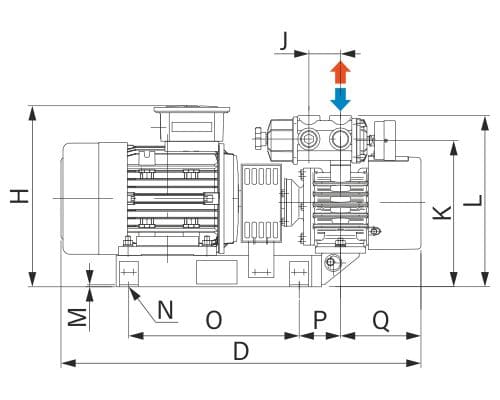

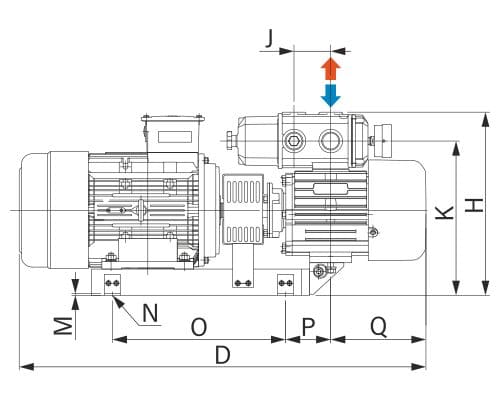

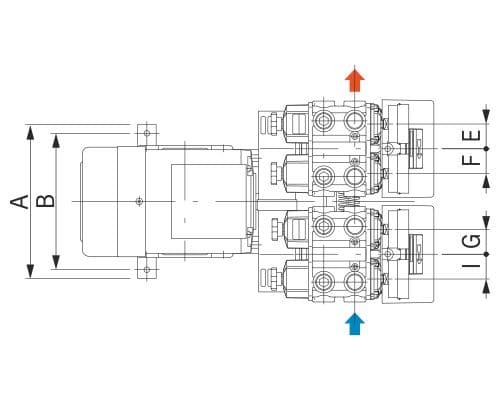

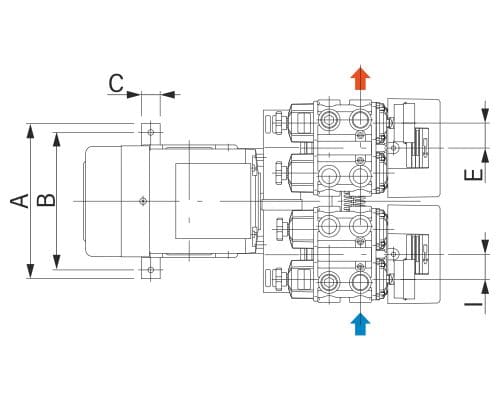

Models

Model (mm)	H	D	W	A	B	C	E	F	G	I	J	K
CBX15-L-VB	(269)	(474)*	(324)	233	205	30	40	-	-	40	50	(230)
CBX15-L-VBVB	(269)	(474)*	(324)	233	205	30	40	40	40	40	50	(230)
CBX25-L-VB	(287)*	(571)*	(329)	248	220	30	40	-	-	40	50	(232)
CBX25-L-VBVB	(287)*	(571)*	(329)	248	220	30	40	40	40	40	50	(232)
CBX40-L-VB	(308)*	(675)*	(328)	268	240	30	40	-	-	40	50	(249)
CBX40-L-VBVB	(308)*	(675)*	(328)	268	240	30	40	40	40	40	50	(249)
CBX62-L-VB	(349)	(775)*	(421)	298	270	30	50	-	-	50	70	(294)
CBX62-L-VBVB	(349)	(775)*	(421)	298	270	30	50	50	50	50	70	(294)

Model (mm)	L	M	N	O	P	Q	R	S	T	U	V	X
CBX15-L-VB	(269)	3.2	4-φ9	225	65	(107)	(232)	45	-	-	45	170
CBX15-L-VBVB	(269)	3.2	4-φ9	225	65	(107)	(232)	45	45	45	45	170
CBX25-L-VB	(272)	3.2	4-φ9	270	65	(128)	(234)	45	-	-	45	170
CBX25-L-VBVB	(272)	3.2	4-φ9	270	65	(128)	(234)	45	45	45	45	170
CBX40-L-VB	(288)	3.2	4-φ9	305	75	(152)	(251)	45	-	-	45	170
CBX40-L-VBVB	(288)	3.2	4-φ9	305	75	(152)	(251)	45	45	45	45	170
CBX62-L-VB	-	3.2	4-φ10	330	86	(182)	-	55	-	-	55	221
CBX62-L-VBVB	-	3.2	4-φ10	330	86	(182)	-	55	55	55	55	221

* Dimensions are for V type. * Reference data with standard motor

A rotor is placed eccentrically within a cylinder. All components are precisely manufactured and adjusted to achieve minimum clearances. Vanes are inserted into slots in the rotor and are free to slip in and out within the walls of the cylinder. As the rotor turns, the vanes slide out and are kept in constant contact with the cylinder wall due to centrifugal force.
As the rotor turns, the volume of space between the vanes changes. As shown in the illustration, when the rotor spins from state 1 to 2, the increase in volume at the intake creates a vacuum. As the volume of space between the vanes decreases during the cycle, the air trapped between the vanes is compressed as shown between states 2 and 3. Finally between states 3 and 4 the compressed air is allowed to escape through the air outlet. The process repeats as the rotor continuously rotates in order to achieve a constant air flow from inlet to outlet.
A four-vane-type pump provides intake/discharge 4 times in a single rotation. Defining volume at the end of intake as V (L), and rotation speed as N (rpm), 4VN (L) of air is discharged per minute. This theoretical value is what's known as the designed pumping capacity.
